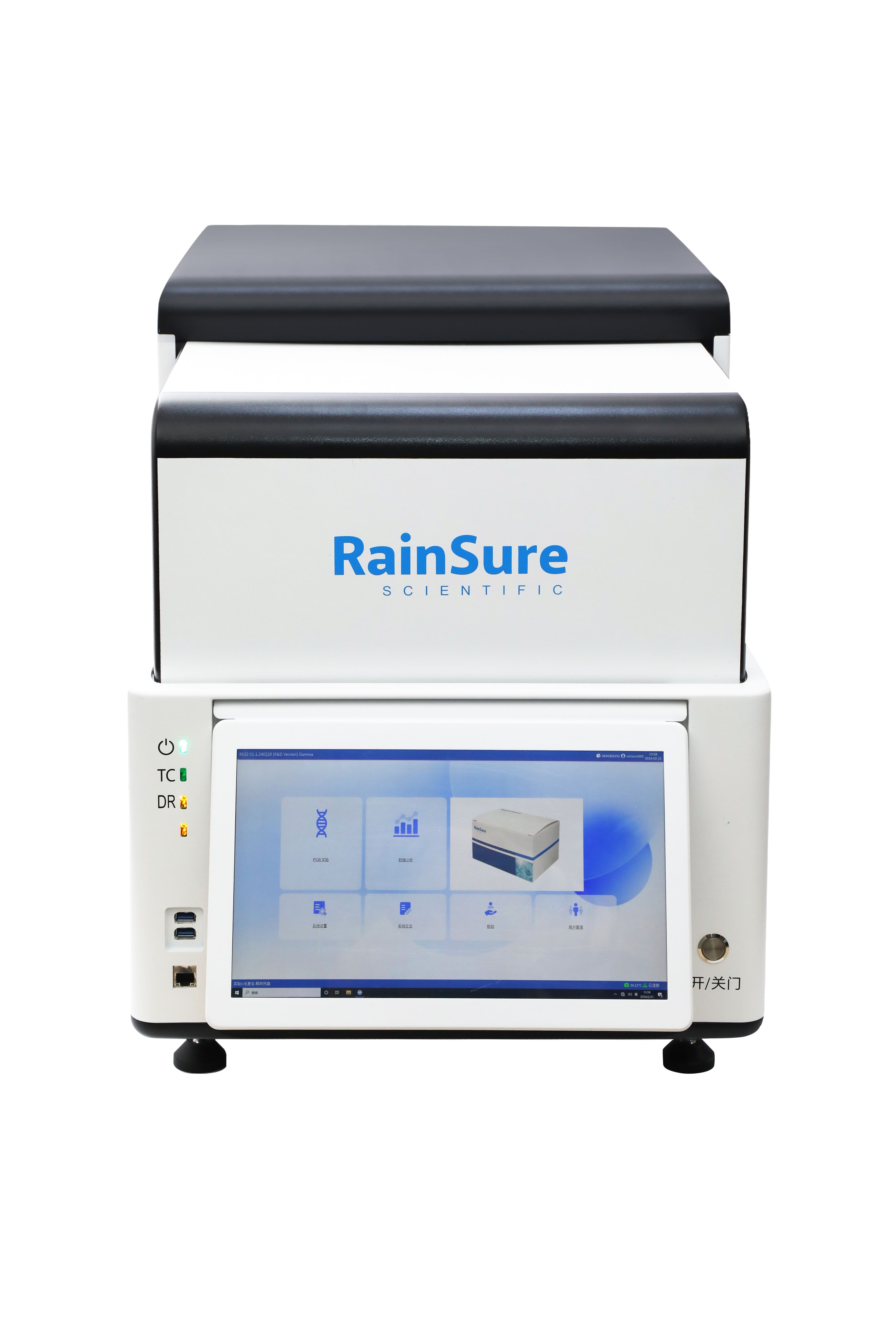

RS32 All-in-One dPCR Systems
RS32 Series - powerful digital PCR capabilities in a compact, streamlined platform
RS32 All-in-One dPCR Systems
Compact digital PCR platform combining sample preparation, amplification, and analysis in a single, easy-to-use instrument.
The RS32 All-in-One Droplet Digital PCR System brings next-generation precision to your laboratory, enabling research at a level once beyond reach.
Based on the principle of sample partitioning and Poisson statistics, DNA or RNA templates are divided into over 20,000 nanoliter droplets, each containing zero or one target molecule. After PCR amplification, droplets with amplified targets emit fluorescence, while negatives remain dark. By counting these fluorescent droplets, the system calculates absolute copy number with unmatched accuracy.
Powered by advanced microfluidic technology, the RS32 ensures consistent droplet generation and robust performance across every run.
The system supports a wide range of applications, including tumor biomarker detection, copy number variation, viral and microbial pathogen analysis, GMO testing, mRNA/miRNA quantification, rare variant detection, NGS reference standard QC, and gene-editing verification.
Product Features
The industry-leading multi-fluorescence channel design expands the digital PCR system’s capabilities, enabling simultaneous detection of multiple targets and precise multi-channel fluorescence acquisition. It also features a high-speed, fully integrated image analysis system for automated data processing.
Models | Specification |
RS3204 | 4 channels , 32 samples throughput |
RS3205 | 5 channels , 32 samples throughput |
RS3206 | 6 channels , 32 samples throughput |
RS3207 | 7 channels , 32 samples throughput |
Product Specifications
Parameter | Specification |
Droplets per Reaction | 20,000 |
Droplet Volume | ＜1nL |
PCR Thermal Cycling | 40 cycles in＜ 90 minutes （Max heating 5℃/s , max cooling 6℃/s )
Support simultaneous operation of dual PCR thermal cycling programs
Support temperature gradient |
Patent technology | Mono Flex™ Droplet Generation Technology, Universal Macro™ Microfluidic Flat Heating Technology |
Sample type | All types of nucleic acids |
Sample Preparation | Manually load samples and droplet generation oil; also compatible with RainSure's fully automatic sample preparation workstation (automated nucleic acid extraction and digital PCR cartridge loading), no manual operation required |
Sample Throughput per Run | 4-32 samples/run |
Detection Method | CMOS, able to identify negative droplets without the need for reference dye |
Fluorescence Channels | 4 channels: FAM/SYBR Green, HEX/VIC, ROX, and CY5
5 channels: FAM/SYBR Green, HEX/VIC, ROX, CY5, and CY5.5
6 channels: FAM/SYBR Green, HEX/VIC, ROX, CY5, CY5.5, and Atto 425(or CY 7)
7 channels: FAM/SYBR Green, HEX/VIC, ROX, CY5, CY5.5, Atto 425, and CY 7 |
Sensitivity | Detectable mutation frequency as low as 0.001%, enabling single-copy detection |
Dynamic Range | 5 logs |
Quantification Precision | ±10% |
Dimension | 500(W)*750(D)*600(H)(mm) |
Weight | ≤ 50 kg |
Features | Supports sample recovery by applying pressure to the cartridge.
Supports long-term storage and re-scanning of cartridge |
